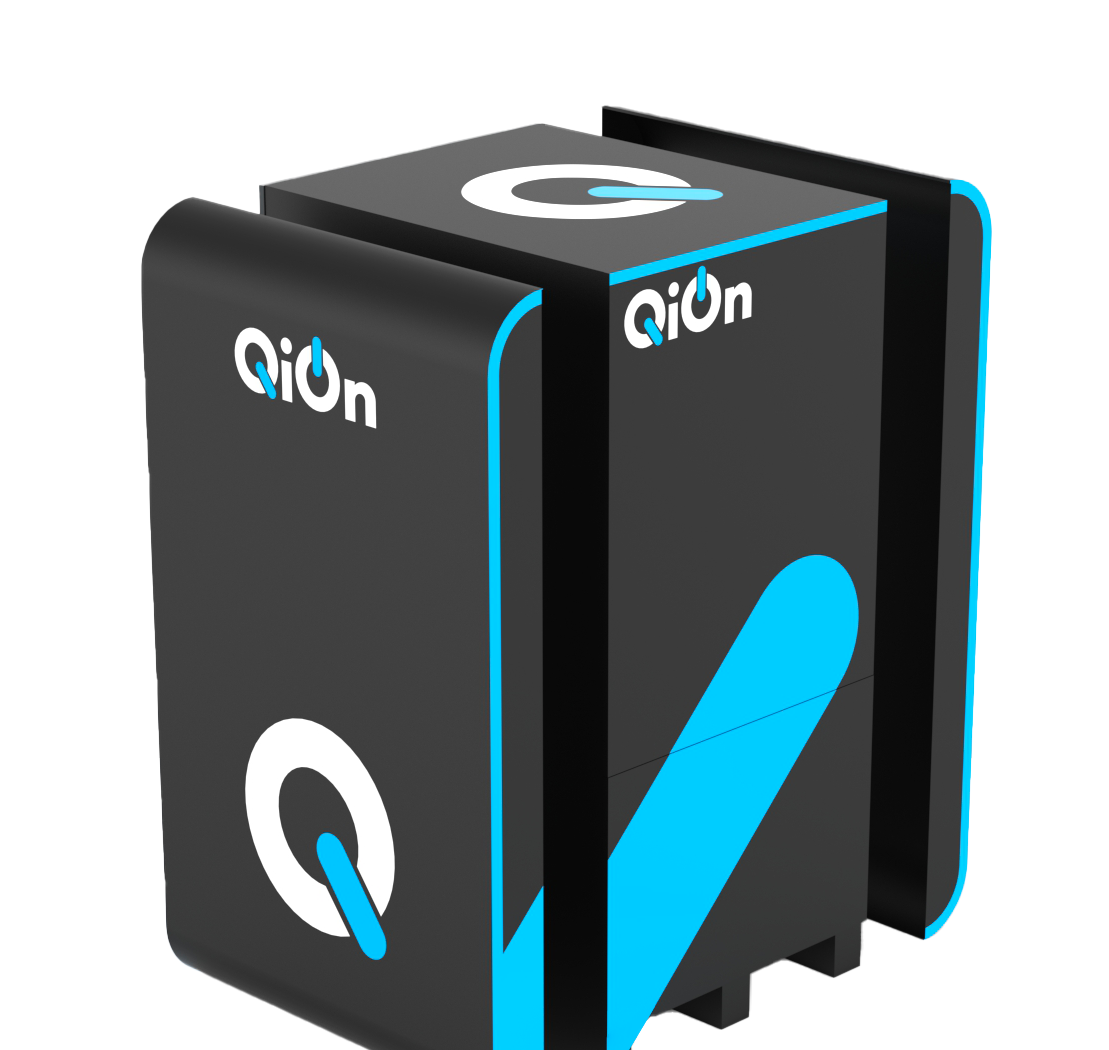

235kWh battery energy storage solution front view

BS The ThunderCell

Up to 235kWh

The ThunderCell 235kWh is a high-density, fully-integrated, internally liquid-cooled BESS (Battery Energy Storage Solution) with a 235kWh capacity, featuring a multifunction thermal regulation system, supported by the QTMS® (QiOn Thermal Management System®), that dynamically adjusts the temperature (cooling/heating/stabilizing) of the battery packs in response to the surrounding environment, allowing Polar-to-Desert safety applications (-30/+60°C).

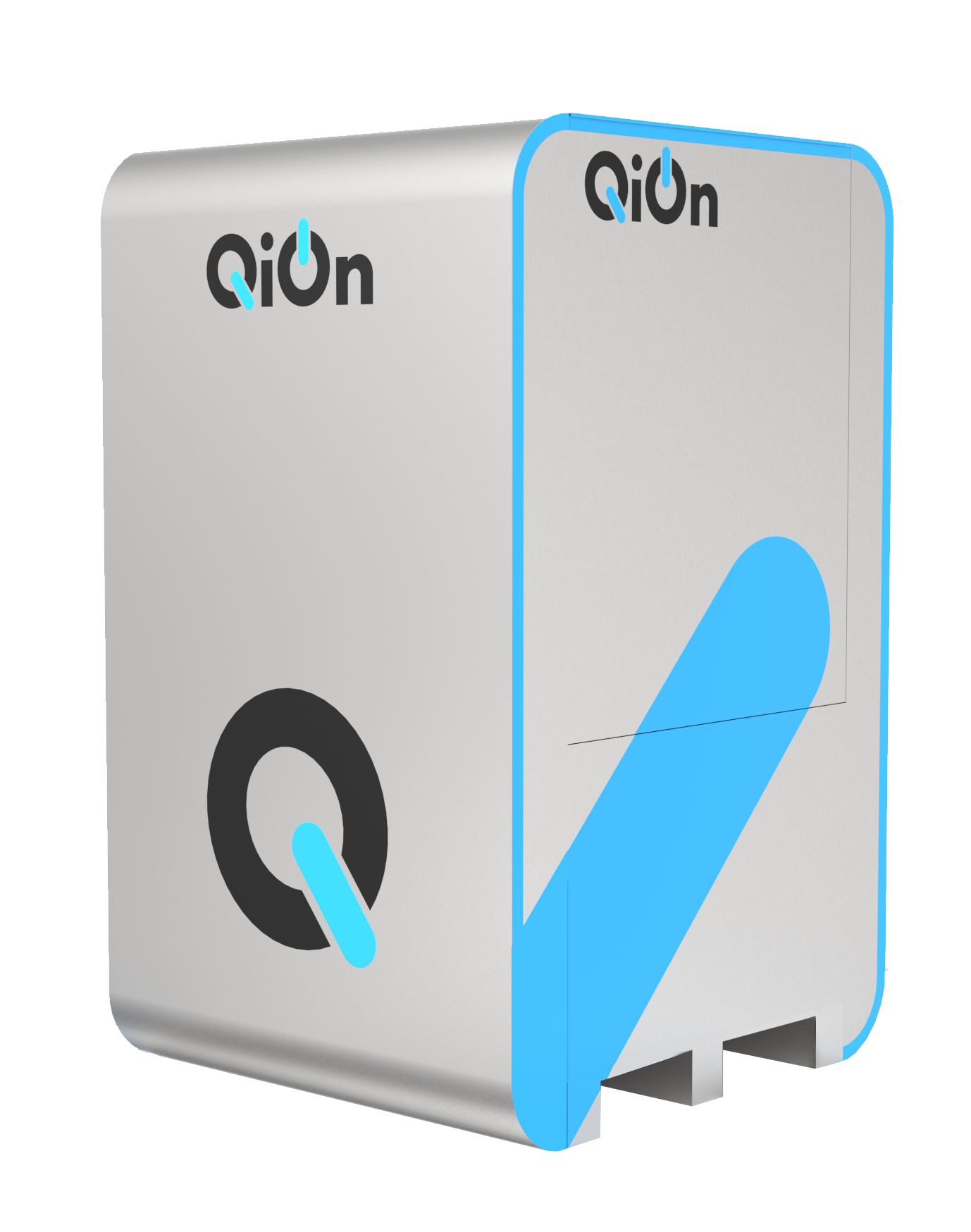

The ThunderCell 235kWh Battery Energy Storage Solution 45degree view
General Specs       Download data sheet
Capacity 235kWh
Charging/Discharging Power 120kW
Cycle Life 6000 / 8000
Maximum Altitude 4000m
H x W x D 2350mm x 1120mm x 1400mm (92.52" x 44.09" x 55.12")
Weight 2250kg
Working Temperature
Working Temperature
-0 °C
+0 °C
-45 °C
0 °C
+90 °C
Operating Humidity
≤ 95%
0%
100%
Protection Grade
IP 55

Available with IP65/66

Battery packs protection
IP 66
Protective Functions
OVERCURRENT PROTECTIVE FUNCITON VECTOR ICON IN A BLUE OUTLINE
Over-current Protection
UNDERVOLTAGE PROTECTIVE FUNCITON VECTOR ICON IN A BLUE OUTLINE
Under-Voltage Protection
OVERVOLTAGE PROTECTIVE FUNCITON VECTOR ICON IN A BLUE OUTLINE
Over-Voltage Protection
RESIDUAL CURRENT PROTECTIVE FUNCTION VECTOR ICON IN A BLUE OUTLINE
Residual Current Protection
LIGHTNING PROTECTIVE FUNCITON VECTOR ICON IN A BLUE OUTLINE
Lightning Protection
SHORTCUT PROTECTIVE FUNCITON VECTOR ICON IN A BLUE OUTLINE
Short Circuit Protection
A vector icon of the temperature protective function, outlined in blue
Over Temperature Protection
GROUND PROTECTIVE FUNCITON VECTOR ICON IN A BLUE OUTLINE
Grounding Fault Protection
BS The ThunderStorage
MW Modular Technology
